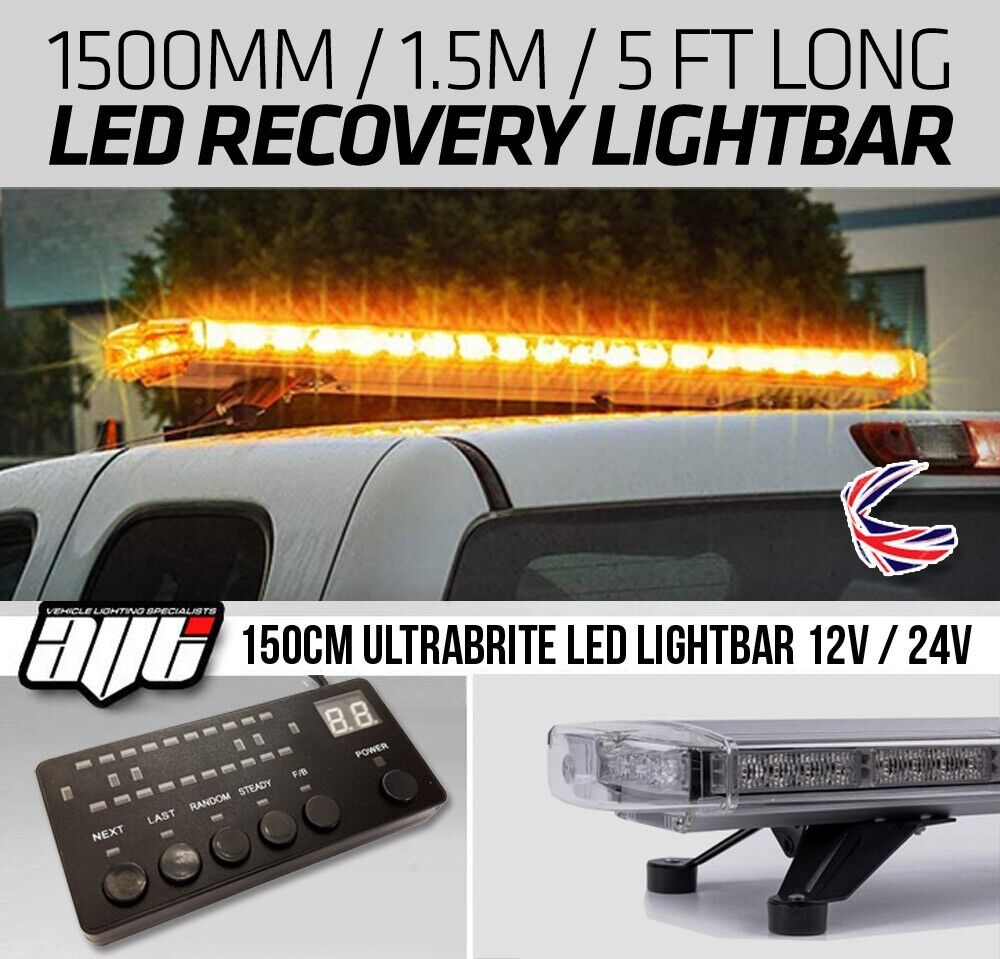

1.5 Metre AVT Recovery Amber LED Lightbar 12v with Digital Controller
The new AVT 1500 4R Lightbar brings you the Latest High Power LED technology in a low profile Compact Modular design with a tough aluminium chassis.

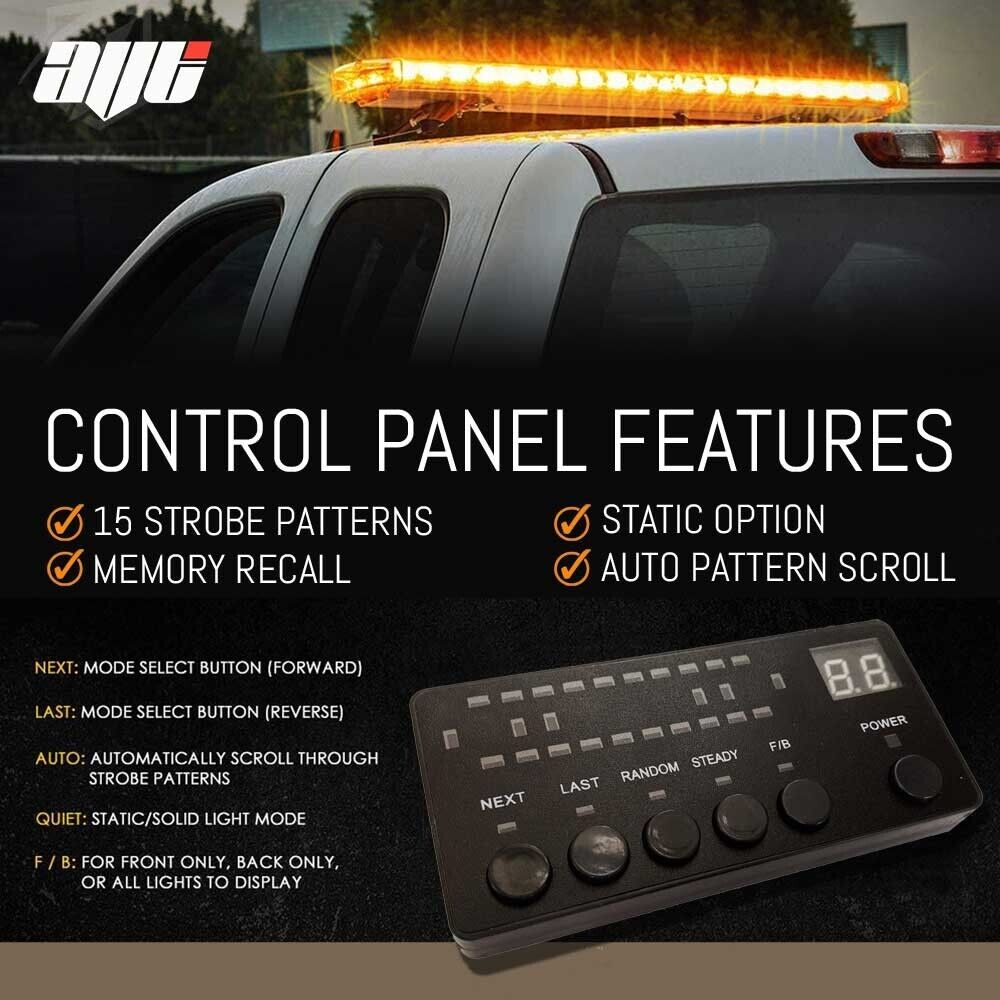

This lightbar features a in cab digital dash mount controller allowing you to select 15 different flash patterns and directional signalling. The unit features in-built memory allowing the user to select the preferred pattern for every day use. You can also switch off the rear array of LEDs seperately so as not to blind drivers behind you.

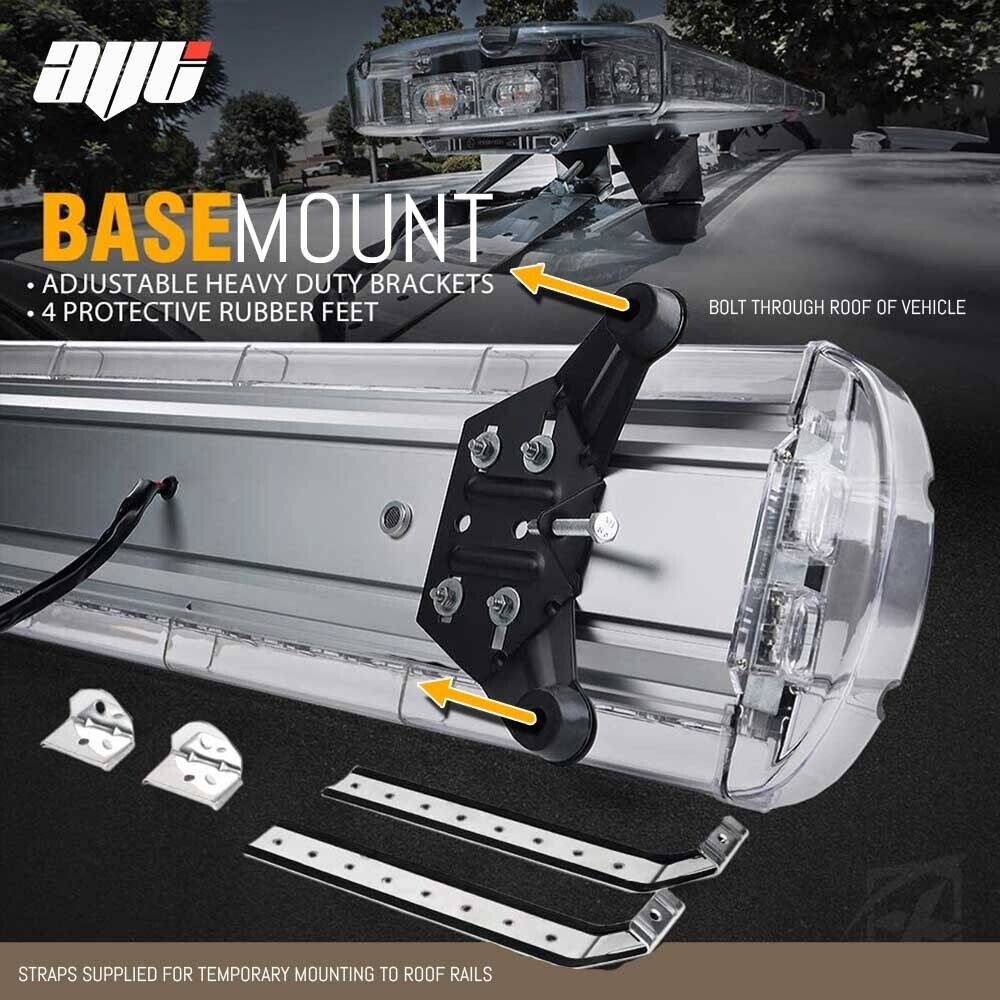

The bar features two heavy duty steel feet with 4 rubber bushed mounts. To install, simply drill 4 holes that line up witht the feet holes, one hole for the main power cable, and use suitable length bolts (not included) to bolt your lightbar to your roof skin.
The in-cab controller can be mounted anywhere inside your vehicle.
Specification
Make: AVT
Lens: Clear Lens High Powered Amber 3w LED’s
Voltage: 12v
Current: 5A Peak
Fitting: 4 Bolt Mount
Flash Pattern: 15 Flash Patterns
Certificates: EMC Approved (ECE R10), IP67, CE marked
Dimensions: 1500mm (L) 110mm (H) x 115mm (W)
Warranty: 24 Months
Parts Supplied:
1x Lightbar
2x Steel legs
4x Rubber Mounts
M8 Carriage nuts and bolts
Dash Controller
3.5m main loom
Installation:
Thick Red cable - Power supply to main lightbar - 12v (Usually Permanent)
Thick black cable - Earth to main lightbar - Earth
Supplied with 3.5 meters of shielded power cable
Cabin controller plugs into the 3.5m loom via short cable
Dimensions : 1500mm (L) 110mm (H) x 115mm (W)
Designed to be securely bolted down (bolts not included)
